Inleiding: This unit machine is special design for packaging pellets tea into small pillow bag with tiny weight .With function of tea pellets feeding,weighing, Automatic bag forming sealing and output .The main machine has function of bag counting and date coding .

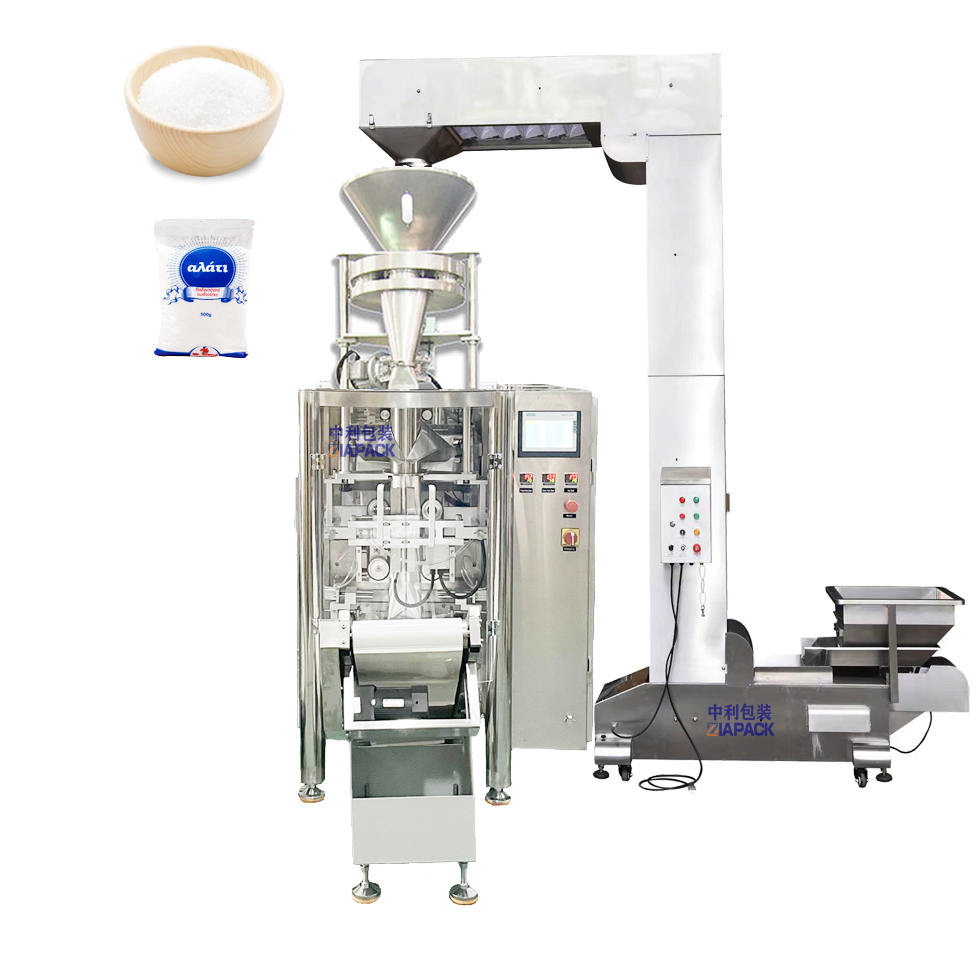

ZL320 Vertical bag forming filling sealing packaging machine
The whole machine frame made by Stainless Steel 304, All Material contact part made by SUS304 .This machine equipped with bag-making, cutting, code printing , bag counting ,bag sealing and bag dropping .According client requirement can add bag pressing ,make gusseted bag ,making flat bottom bag etc.Adopt SIEMENS PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , SMC electromagnetic valve . The machine performance is stable .It is a best choice for improve the automation of modern factory .
Tegniese Parameters:
Weighing Range:10-500gram
Packaging Speed:30-60bags/min
Bag size: (80-220)*(60-150)mm(L*W)
Film roller width :320mm
lugvereiste: 0.6Mpa 0.65m³/min
outer diameter: 300mm
binnediameter: 75 mm
inner weight: 300kg
Power source: 3.5kW 380V±10% 50Hz
Belangrikste kenmerke en kenmerke
'n Wye reeks sakke: kussingsak, kan 'n vlegsak maak, sak met 'n plat bodem met 'n veranderingstoestel
Hoë spoed: Meer as 20-60 sakke / min
Maklik om te gebruik: PLC-beheerder en kleuraanraakskerm, foutaanduiding op die raakskerm.
Maklik om aan te pas: slegs sowat 10 minute om verskillende sakke te verander.
Frekwensiebeheer: spoed kan aangepas word deur frekwensie omskakeling binne die reeks.
Hoë Outomatisering: onbemande in weeg- en verpakkingproses, masjienalarm outomaties wanneer mislukking.
Veiligheid en higiëne
Geen film nie, masjien sal alarm.
Masjien alarm en stop wanneer die onvoldoende lugdruk.
Veiligheidswagte met veiligheidskakelaars, masjienalarm en stop wanneer die veiligheidswagte oopgemaak word.
Higiëniese konstruksie, die produk kontak dele is aangeneem sus304 vlekvrye staal
